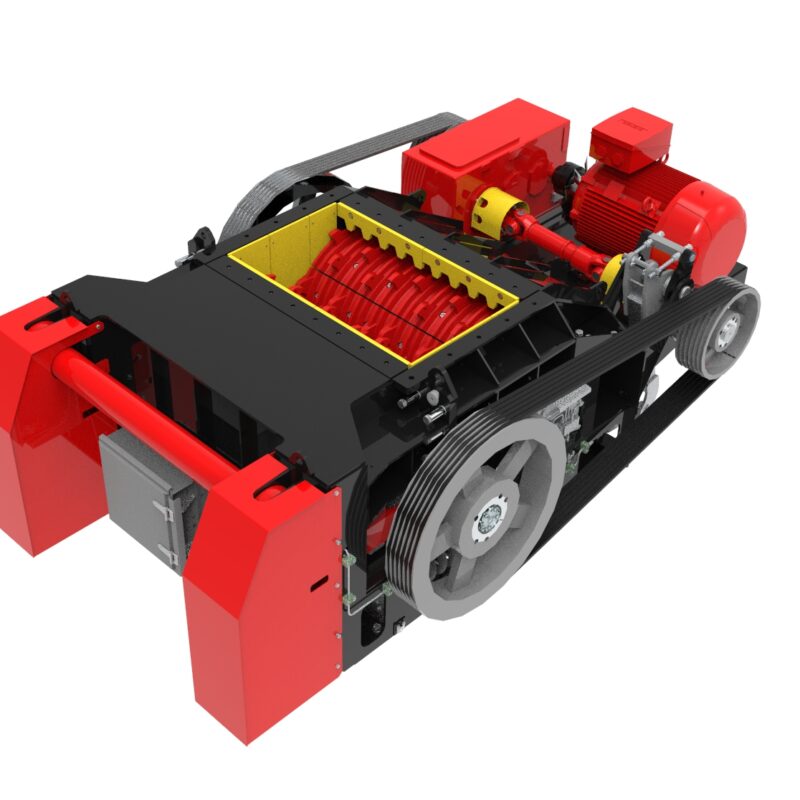

The technology of the CRC series

The CRC series features a belt drive that drives the rollers. Due to the compact design, the crusher can achieve high throughputs in a small space.

An integrated evasion mechanism provides overload protection, which enables a roller to evade foreign bodies and then move back to the starting position.

Use in soft rock

For minerals with compressive strength in the area of soft rock, this crusher is suitable for almost every application. A high quality end product is produced between the crushing rolls.

OVERVIEW OF THE BENEFITS

High shredding ratio
Low fines
Little to hardly any oversize material
Mechanical gap adjustment with overload protection
Efficient drive technology
Little need for space

At a glance

TECHNICAL CHARACTERISTICS
Crushing gap adjustable Adjustment during production interruption
Overload protection integrated The loose roller dodges fast and returns automatically into the pre-set gap with
Reversing operation optionally automated Blockages are resolved independenetly
Crushing tools Quick-Change-System Fast replacement of individual crushing segments
Control system Machine is fully automated – The machine and process can be monitored and adjusted via an operator panel

– Feed and discharge systems can be integrated into the control

SELECTION OF CRC-CRUSHER SIZES

(other sizes available on request)

Model Roller
Ø [mm]
Roll Lenght
[mm]
Min. Weight
[t]
F100
[mm]
P90
[mm]
Max. Throughput
[t/h]
Min. Motor Power
[kW]
CRC 600 700 1200 – 1800 12 – 15 300 22 – 100 400 1 x 75
CRC 800 900 1200 – 1800 14 – 19 500 22 – 100 600 1 x 110
